Cup brushes crimped with thread

Cup brush crimped TBU dia. 60 hole 22.2 mm/X-LOCK steel wire dia. 0.30 angle grinders

POS TBU 60/X-LOCK ST 0,30
Item number:
43468922
EAN:
4007220119150
Technical data Change variant

Login / Register
Choose options
Dia. external
Dia. filament material
Dia. thread
Filament material
Packaging unit
Technical information

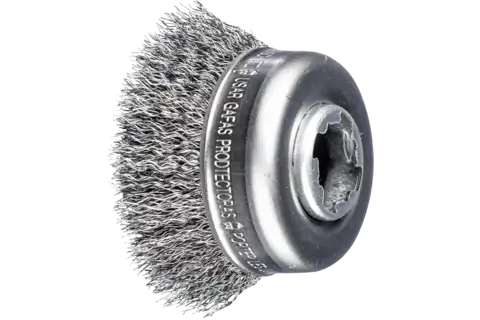

Cup brush crimped TBU dia. 60 hole 22.2 mm/X-LOCK steel wire dia. 0.30 angle grinders

Dia. external
60 mm
Dia. filament material
0.3 mm
Dia. thread
X-LOCK
Filament material
Steel wire (ST)
Grit size
-
Length, filament
20 mm
Max. RPM
12500 RPM
Mounting system
X-LOCK
Packaging
POS packaging
RPM, optimum
6300 - 9400 RPM
Packaging unit
1 piece
Description

Excellent for medium-duty brushing such as deburring, cleaning and derusting on large surfaces.

The Bosch X-LOCK system for angle grinders enables you to change tools quickly and easily. Instead of a round centre hole, the X-LOCK system features an X-shaped contour, which allows the tool to be fixed on the angle grinder in a form-fitting manner. This means different kinds of tools can be clamped in a reliable manner in a very short space of time. The unique system meets the highest of quality and safety standards and can withstand rough and harsh application conditions. X-LOCK from Bosch is the world's first quick-changing system for angle grinders: Position the tool in the X-LOCK holder, click it into place – and you're ready! It's never been so easy to change accessories on angle grinders. X-LOCK is creating a new standard which makes professionals’ lives easier and increases their productivity. Bosch Power Tools relies on strong partners like PFERD TOOLS. PFERD TOOLS has developed the principle for connecting the X-LOCK punched part with the bonded abrasive, flap discs and brushes and created the conditions to enable them to be produced industrially.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 °C.

Special features
  • Highly flexible, enabling optimal adjustment to the workpiece contour.
  • With X-LOCK arbor for quick and easy tool changing.
  • Secure fixing as the tool audibly clicks into place.
  • Long tool life through use of PFERD TOOLS special wire.
  • Creates fine surfaces.
Recommendations for use
  • Please observe the recommended rotational speeds.
  • For optimum results, use on speed-adjustable angle grinders.
  • Place the tool on the X-LOCK quick-change system of your angle grinder and secure it by lightly pressing it down. The tool will audibly click into place.
  • Loosen the tool by actuating the lever.
Materials that can be worked
Cast iron
Cast steel
Elastomers
Steel, cast steel
Steel materials with a hardness > 54 HRC
Steels up to 1,200 N/mm² (< 38 HRC)
Thermoplastics
Thermosetting plastics
Wood
Applications
Cleaning
Deburring
Derusting
Paint stripping
Removing oxide layers
Roughening
Drive types
Angle grinder
Cordless angle grinder
PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends brushes with an X-LOCK mounting for rapid tool changes.
