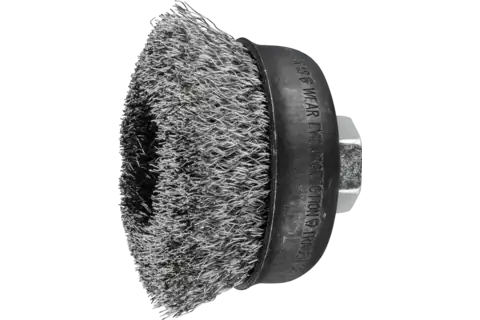

cup brush crimped TBU dia. 75mm M14 stainless steel wire dia. 0.30 angle grinders

Technical information

Dia. external: 75 mm
Dia. filament material: 0.3 mm
Dia. thread: M14x2
Filament material: Stainless steel wire (INOX)
Grit size: -
Length, filament: 25 mm
Max. RPM: 12500 RPM
Mounting system: Thread
Packaging: Industrial packaging
RPM, optimum: 5000 - 8100 RPM
Packaging unit: 5 pieces

Description

Excellent for medium-duty brushing such as deburring, cleaning and derusting on large surfaces.

In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD TOOLS uses wire quality 1.4310/1.4301 (V2A) for all INOX brushes. Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life. All PFERD TOOLS brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A. The wire quality 1.4310/1.4301 tends to become ferromagnetic in the case of cold working; i.e. it can be attracted using magnets. The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.

Stainless steel wire (INOX) withstands temperatures up to 450 °C.

Special features

Highly flexible, enabling optimal adjustment to the workpiece contour.
Very good corrosion resistance.
Creates fine surfaces.
The brush is degreased and does not leave any oil residue on the workpiece.

Recommendations for use

Please observe the recommended rotational speeds.
For optimum results, use on speed-adjustable angle grinders.

Materials that can be worked: Aluminium; Bronze; Cobalt-based alloys; Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Nickel or titanium-based superalloys; Other non-ferrous metals; Soft titanium alloys (tensile strength 500 N/mm²); Stainless steel (INOX); Titanium; Titanium alloys

Applications: Cleaning; Deburring; Derusting; Paint stripping; Removing heat discolouration; Removing oxide layers; Roughening

Drive types: Angle grinder; Cordless angle grinder; Drive spindle

Downloads

Cup brushes crimped with thread

cup brush crimped TBU dia. 75mm M14 stainless steel wire dia. 0.30 angle grinders

TBU 75/M14 INOX 0,30
