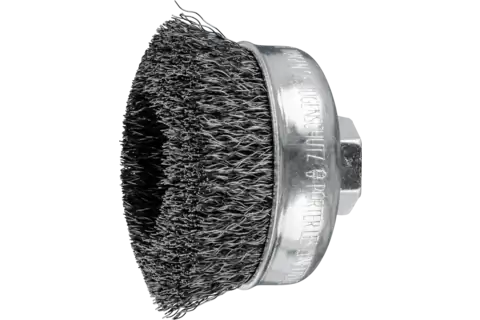

Cup brush crimped TBU dia. 75 mm M14 steel wire dia. 0.30 angle grinders

Technical information

Cup brush crimped TBU dia. 75 mm M14 steel wire dia. 0.30 angle grinders

Dia. external: 75 mm
Dia. filament material: 0.3 mm
Dia. thread: M14x2
Filament material: Steel wire (ST)
Grit size: -
Length, filament: 25 mm
Max. RPM: 12500 RPM
Mounting system: Thread
Packaging: Industrial packaging
RPM, optimum: 6300 - 9400 RPM
Packaging unit: 5 pieces

Description

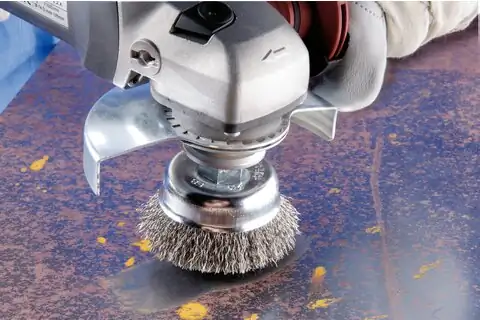

Excellent for medium-duty brushing such as deburring, cleaning and derusting on large surfaces.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD TOOLS special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 Â°C.

Special features

Highly flexible, enabling optimal adjustment to the workpiece contour.
Long tool life through use of PFERD TOOLS special wire.
Creates fine surfaces.

Recommendations for use

Please observe the recommended rotational speeds.
For optimum results, use on speed-adjustable angle grinders.

Materials that can be worked: Cast iron; Cast steel; Elastomers; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Thermoplastics; Thermosetting plastics; Wood

Applications: Cleaning; Deburring; Derusting; Paint stripping; Removing oxide layers; Roughening

Drive types: Angle grinder; Cordless angle grinder; Drive spindle

Downloads

Cup brushes crimped with thread

Cup brush crimped TBU dia. 75 mm M14 steel wire dia. 0.30 angle grinders

TBU 75/M14 ST 0,30
