POLISTAR-TUBE PST-T dia. 70 mm centre hole dia. 4 mm A120 for grinding holes and pipes

Technical information

POLISTAR-TUBE PST-T dia. 70 mm centre hole dia. 4 mm A120 for grinding holes and pipes

Abrasive: Aluminium oxide A
Dia. external: 70 mm
Dia. hole: 4 mm
Grit size: 120
Max. RPM: 5450 RPM
Number, layers: 6 pcs.
RPM, optimum: 2200 RPM
Packaging unit: 10 pieces

Description

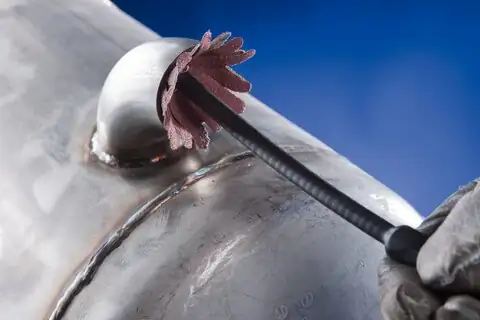

POLISTAR-TUBE are multi-layered cross buffs that are riveted together. They are used especially for working on the inner surfaces of pipes and pipe bends.

Use cross buffs with the suitable flexible shafts 4 PST-T DIN 10/M4.

Advantages

Highly flexible, enabling optimal adjustment to the contour.
Prevents corrosion on stainless steel (INOX) pipes through the use of stainless steel rivets.
Achieves a very fine surface quality of up to Ra 0.2 μm.

Recommendations for use

For the best results, use at a recommended cutting speed of 15-20 m/s.
Select the tool diameter based on the respective pipe's inner diameter: PST-T diameter 70 mm for inside pipe diameter 45-50 mm
Grit size 120 suitable for roughness value 0.6–1.0 μm Ra.

Ordering notes

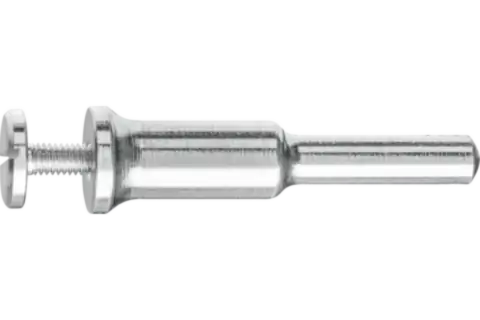

Please order arbor separately.

Safety notes

For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Materials that can be worked: Aluminium; Annealed cast iron; Brass; Cast steel; Copper; Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC)

Applications: Deburring; Leveling; Step-by-step fine grinding; Structuring (matt finishing, brush matting and satin finishing); Surface work; Work on weld seams
